河北配电箱设备 基业箱设备 冷弯型材生产设备 冷弯型钢设备生产线厂家

“炜桦冷弯”提供的电气柜全自动冷弯成型生产线为定制化设备是国内最早最专业制造配电柜外框一次成型设备，GGD电器柜骨架成型设备的公司之一，是建设部金属结构协会会员单位，是山东科技职业学院校企，所供设备都是按照国标来设计制造，无论是技术设计、加工工艺、制造精度、设备质量在同行业中都有优势。



The automatic cold bending production line for electric cabinet provided by "Weibi cold bending" is the earliest and most professional one-time bing equipment for the outer frame of distribution cabinet in China. It is one of the companies of GGD electric cabinet skeleton bing equipment. It is a member unit of the Metal Structure Association of the Ministry of Construction and a school enterprise of Shandong Vocational College of Science and Technology. The equipment provided is designed and manufactured according to the national standard, regardless of technical design. Processing technology, manufacturing accuracy and equipment quality have advantages in the same industry.



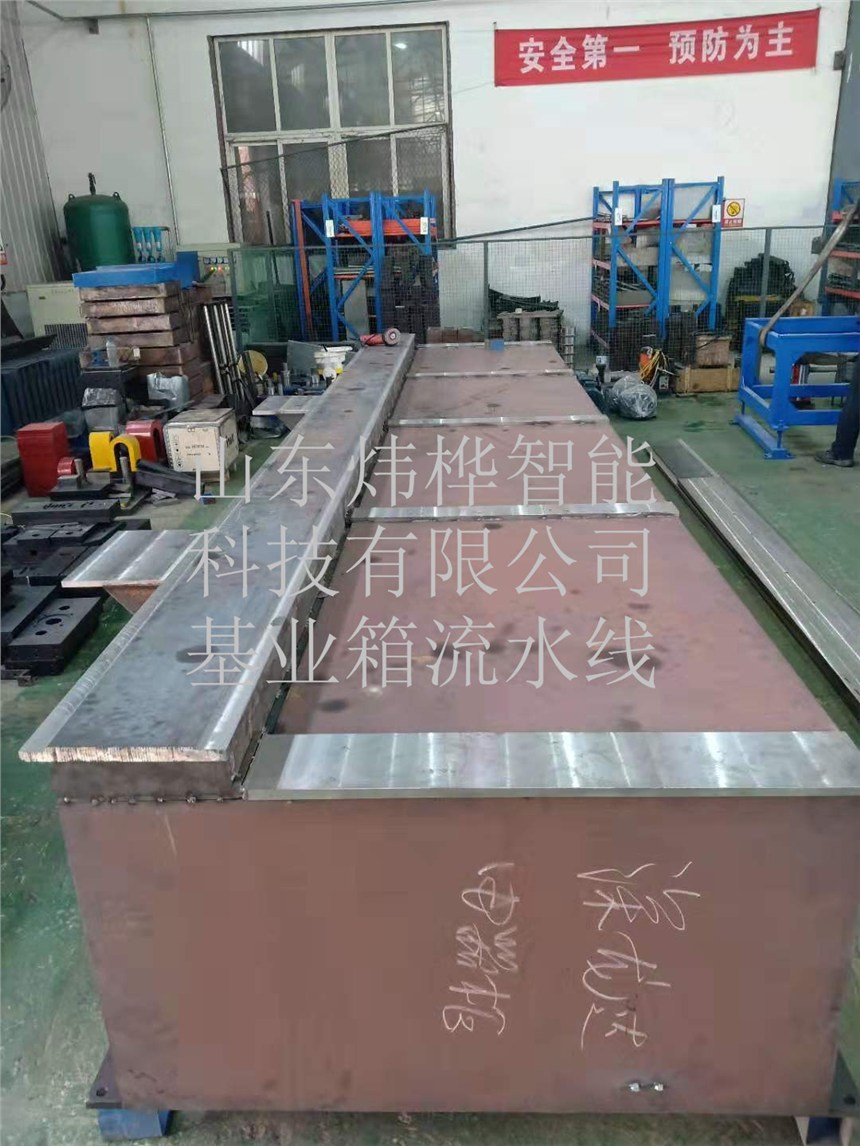

配电箱生产线工艺流程：



Distribution box production line process:



带钢上料→钢卷放料→材料校平→高精度伺服送料→多工位组合式伺服冲孔→高精度冷弯成型→切断→折框→收料→电气控制系统



Strip feeding steel coil discharge material leveling high precision servo feeding multi-station combined servo punching high precision cold bending bing cutting folding frame feeding electrical control system



1、高度的自动化程序，减少人工操作；



1. Highly automated procedures to reduce manual operation;



2、工作效率高，提高企业产能；



2. High working efficiency, improve enterprise productivity;



3、整个工艺的生产流程稳定，提高产品的品质和一致性；



3. The production process of the whole process is stable and the quality and consistency of the products are improved.



4、大批量生产，降低了企业生产成本。



4. Mass production reduces the production cost of enterprises.



带钢上料→钢卷放料→材料校平→高精度伺服送料→多工位组合式伺服冲孔→高精度冷弯成型→切断→折框→收料→电气控制系统



Strip feeding steel coil discharge material leveling high precision servo feeding multi-station combined servo punching high precision cold bending bing cutting folding frame feeding electrical control system



生产线主要技术参数：



Main technical beters of production line:



材料规格：Q235冷轧带钢，镀锌带钢



Material Specification: Q235 Cold Rolled Strip, Galvanized Strip



材料厚度：0.6→1.2mm（可定制）



Material thickness: 0.6 1.2mm (customizable)



生产速度：2只/分钟



Production speed: 2 per minute



生产规格：箱体大小：250*300--800*1000；（可定制）



Production Specification: Box Size: 250*300-800*1000; (Customizable)



箱子深度：160/180/200/250（可定制）



Box depth: 160/180/200/250 (customizable)



电压参数：380V/415V，50Hz, 3相



Voltage beters: 380V/415V, 50Hz, 3-phase



气源：0.5m3/Min；压力为0.7MPa



Gas source: 0.5m3/Min; pressure: 0.7MPa



齿轮油型号：18#齿轮油



Gear Oil Type: 18 # Gear Oil



轧辊材质：Cr12数控加工 ；淬火处理硬度HRC58°-60°



Roll material: Cr12 numerical control processing; hardness of quenching treatment HRC58 - 60.



驱动电机：变频电机驱动



Driving motor: variable frequency motor drive



总电机功率：25kw



Total motor power: 25 kW



切断模具材质： Cr12MoV



Cutting Die Material: Cr12MoV



传动模式：齿轮箱



Drive mode: gearbox



切断方式：液压切断



Cut-off mode: hydraulic cut-off



切断尺寸公差：≤ ±0.5mm（长≤1000mm）



Cut-off dimension tolerance: <0.5mm (length <1000mm)



操作系统：触摸屏人机界面操控



Operating System: Man-machine Interface Control of Touch Screen



电气控制：三菱PLC程序控制



Electrical control: Mitsubishi PLC program control



占地空间： 20*2*3米（长×宽×高）



Coverage space: 20*2*3 m (length *b *height)
