- Requires minimal floorspace with a 74.8" x 120.5" footprint
- Done-In-One operations reduce total production time
- Simultaneous 4-axis capabilities and A-axis indexing
- High-rigidity table design provides precision machining
- 12,000 and 18,000 spindle speeds provide exceptional versatility
- 18-tool and 30-tool magazines feature automatic tool changers
- Changes tools without returning table to home position
- Linear roller guides on X-, Y- and Z-axes provide accurate positioning
- MATRIX NEXUS 2 CNC Control offers optimized multi-surface machining
- Intelligent Functions offer ease of operation and optimum efficiency
- Large top opening provides convenient workpiece loading/unloading
- Optional two-pallet changer facilitates unattended machining
- Requires minimal floorspace with a 74.8.5" x 120.5" footprint
- Done-In-One operations reduce total production time
- Rotary/tilt table enables accurate simultaneous 5-axis machining
- 12,000 and 18,000 spindle speeds provide exceptional versatility
- 18-tool and 30-tool magazines feature automatic tool changers
- Changes tools without returning table to home position
- MATRIX 2 CNC Control provides optimized 5-axis machining
- Intelligent Functions offer ease of operation and optimum efficiency
- Large top opening provides convenient workpiece loading/unloading
- Optional two-pallet changer facilitates unattended machining
- Requires minimal floorspace with a 94.5" x 123.4" footprint
- Done-In-One operations reduce total production time
- Rotary/tilt table enables accurate simultaneous 5-axis machining
- 12,000 and 18,000 spindle speeds provide exceptional versatility
- 18-tool and 30-tool magazines feature automatic tool changers
- Changes tools without returning table to home position
- MATRIX 2 CNC Control provides optimized 5-axis machining
- Intelligent Functions offer ease of operation and optimum efficiency
- Large top opening provides convenient workpiece loading/unloading
- Optional two-pallet changer facilitates unattended machining
VARIAXIS j-500
MACHINE DESCRIPTION:
The VARIAXIS j-500 vertical machining center offers cost-effective and efficient multi-surface part machining and single-setup processing through fast, high-rigidity spindles as well as a high accuracy rotary/tilt table.
The machine handles all processes from raw material input through final machining to provide dramatic reductions in lead times and improve workpiece accuracy through the elimination of multiple setups.
MACHINE CHARACTERISTICS:
机床参数
| Specification | Values | |
|---|---|---|
| 加工能力 | 最大工件直径 | 500 mm / 19.690 in |
| 最大工件高度 | 350 mm / 13.780 in | |
| 主轴 | 主轴锥度 | No. 40 |
| 最大转速 | 12000 rpm | |
| 电机功率 (30 分钟额定) | 11 kw / 15.0 hp | |
| 刀库 | 刀具数量 | 18 |
| 回转轴 | 工作台倾斜(A axis) | 150 度 |
| 工作台回转(C axis) | 360.0000 度 | |
| 进给轴 | 行程(X轴) | 350 mm / 13.78 in |
| 行程(Y轴) | 550 mm / 21.65 in | |
| 行程(Z轴) | 510 mm / 20.08 in | |
VARIAXIS j-500/5X
MACHINE DESCRIPTION:
The VARIAXIS j-500 5X vertical machining center with a high-precision rotary/tilt table is a high-value solution for those considering simultaneous 5-axis technology for the first time. The machine handles all processes from raw material input through final machining to provide dramatic reductions in lead times and improve workpiece accuracy through the elimination of multiple setups.
MACHINE CHARACTERISTICS:
机床参数
| Specification | Values | |
|---|---|---|
| 加工能力 | 最大工件直径 | 500 mm / 19.690 in |
| 最大工件高度 | 350 mm / 13.780 in | |
| 主轴 | 主轴锥度 | No. 40 |
| 最大转速 | 12000 rpm | |
| 电机功率 (30 分钟额定) | 11 kw / 15.0 hp | |
| 刀库 | 刀具数量 | 18 |
| 回转轴 | 工作台倾斜(A axis) | 150 度 |
| 工作台回转(C axis) | 360.0000 度 | |
| 进给轴 | 行程(X轴) | 350 mm / 13.78 in |
| 行程(Y轴) | 550 mm / 21.65 in | |
| 行程(Z轴) | 510 mm / 20.08 in | |
VARIAXIS j-600
机床参数
| Specification | Values | |
|---|---|---|
| 加工能力 | 最大工件直径 | 730 mm / 28.740 in |
| 最大工件高度 | 450 mm / 17.720 in | |
| 主轴 | 主轴锥度 | No. 40 |
| 最大转速 | 12000 rpm | |
| 电机功率 (30 分钟额定) | 11 kw / 15.0 hp | |
| 刀库 | 刀具数量 | 18 |
| 回转轴 | Spindle Tilt (B axis) | 210 度 |
| 工作台回转(C axis) | 360.0000 度 | |
| 进给轴 | 行程(X轴) | 850 mm / 33.46 in |
| 行程(Y轴) | 550 mm / 21.65 in | |
| 行程(Z轴) | 510 mm / 20.08 in | |

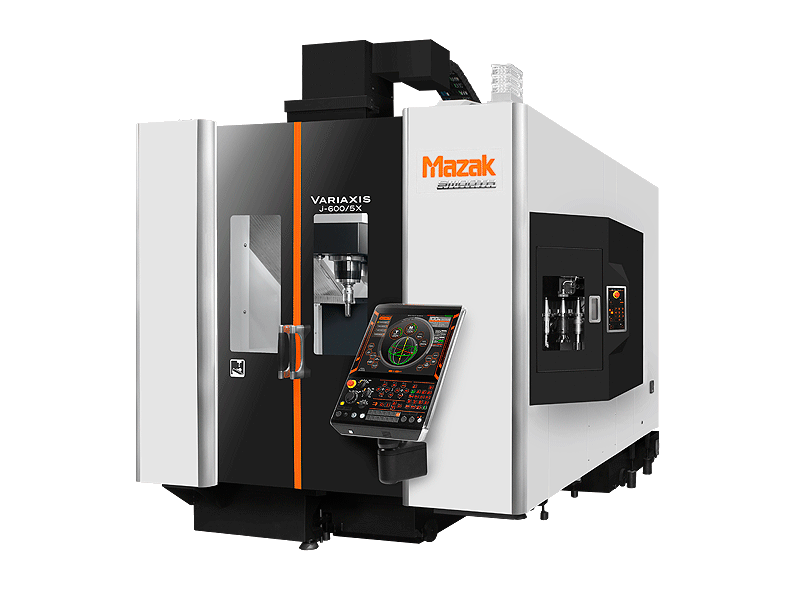

VARIAXIS j-600/5X
MACHINE DESCRIPTION:
The VARIAXIS j-600 5X vertical machining center with a high-precision rotary/tilt table is a high-value solution for those considering simultaneous 5-axis technology for the first time. The machine handles all processes from raw material input through final machining to provide dramatic reductions in lead times and improve workpiece accuracy through the elimination of multiple setups.
MACHINE CHARACTERISTICS:
机床参数
| Specification | Values | |
|---|---|---|
| 加工能力 | 最大工件直径 | 730 mm / 28.740 in |
| 最大工件高度 | 450 mm / 17.720 in | |
| 主轴 | 主轴锥度 | No. 40 |
| 最大转速 | 12000 rpm | |
| 电机功率 (30 分钟额定) | 11 kw / 15.0 hp | |
| 刀库 | 刀具数量 | 18 |
| 回转轴 | Spindle Tilt (B axis) | 210 度 |
| 工作台回转(C axis) | 360.0000 度 | |
| 进给轴 | 行程(X轴) | 850 mm / 33.46 in |
| 行程(Y轴) | 550 mm / 21.65 in | |
| 行程(Z轴) |
510 mm / 20.08 in |
|
