商品详情
- High speed, simultaneous 5-axis and multiple surface machining
- Tilting spindle
- Large table sizes
- 10,000 rpm / 50 hp spindle and available 5,000-rpm high-torque spindle
- Spindles offered in CAT 50, CAPTO C8 and BIG-PLUS#50
- Tool storage capacities from 40 to 348 tools available
- Two-pallet changing
- PALLETECH automation is available with certain machine mode

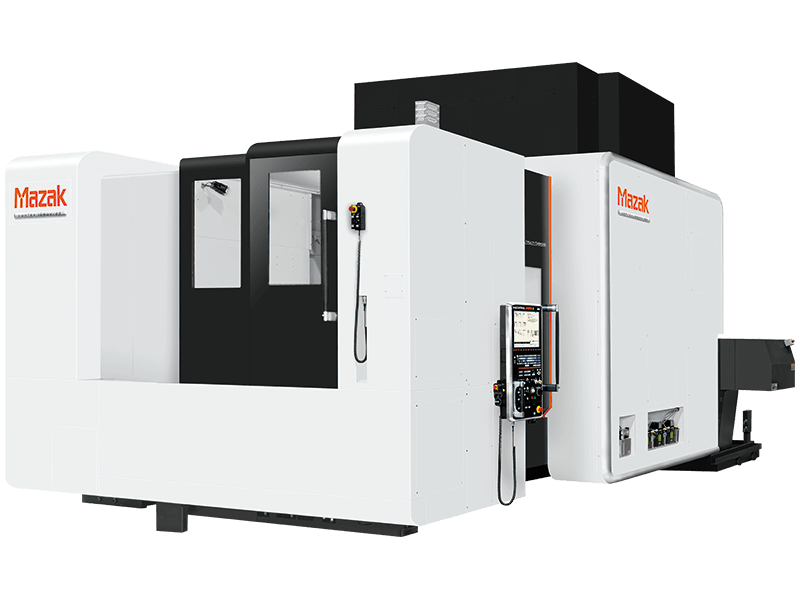

VORTEX e-1060V/8
MACHINE DESCRIPTION:
The VORTEX 1060V/8 5-axis Vertical Machining Center delivers high productivity through full simultaneous 5-axis machining as well as multiple surface machining capabilities. The machine offers large pallet sizes for processing bigger complex workpieces such as those often found in the aerospace industry. A tilt spindle as well as pallet changing highlight the machine's productivity.
MACHINE CHARACTERISTICS:
机床参数
| Specification | Values | |
|---|---|---|
| 加工能力 | 最大工件直径 | 1250 mm / 49.210 in |
| 最大工件高度 | 1250 mm / 49.210 in | |
| 主轴 | 主轴锥度 | No. 50 |
| 最大转速 | 10000 rpm | |
| 电机功率 (30 分钟额定) | 37 kw / 50.0 hp | |
| 刀库 | 刀具数量 | 40 |
| 回转轴 | Spindle Tilt (B axis) | 90 度 |
| 工作台回转(C axis) | 0.0000 度 | |
| 进给轴 | 行程(X轴) | 1875 mm / 73.82 in |
| 行程(Y轴) | 1060 mm / 41.73 in | |
| 行程(Z轴) | 1345 mm / 52.95 in | |
